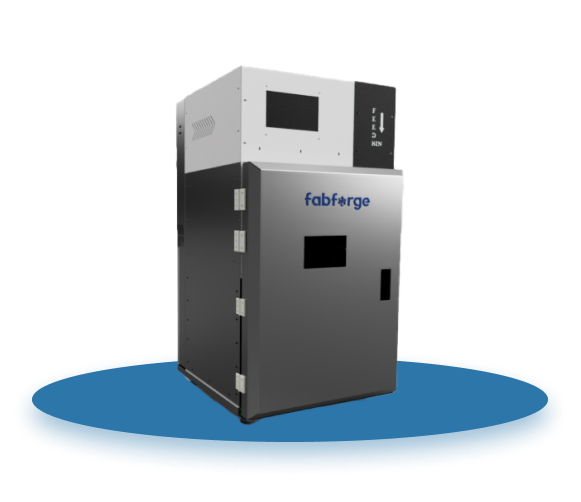

Fabforge-PX4(STANDARD/HYBRID)
- Explore: Advanced Multi-Material Printing across Ceramics, Bio Materials, Silicone, Conductive Pastes and more
- Experience: Next-generation 4-Head paste extrusion for advanced material research
- Push Boundaries: Combine multiple materials and processes in a single precision printing platform
Machine Specification
Version
Fabforge-PX4 Gen 3.0 (HYBRID)
Technology
PPEP (Pneumatic Paste Extrusion Printing) + DPEP (Direct Pellet Extrusion Printing)
Mechanism
Core-XY
System
CPPD
Extruders
4 Heads — Paste / Pellet Hybrid
Build Size
180 × 120 × 90 mm
Dual Mode
Multi-Material Paste + Pellet Extrusion
Nozzle Variants
0.26 – 1.50 mm
Head Temperature
Up to 80°C
Operating Pressure
Up to 8 bar
Head Volume
30 / 55 cc
Position Accuracy
X/Y 0.01 mm
Machine Weight
23 kg
Foot Print
450 × 360 × 450 mm
Power
230 VAC, 360 W
Input Format
STL, OBJ, 3MF
Output Format
G-code
Warranty
1 Year
Connectivity
Supported Materials -Open source
Ceramics - HAP, Bentonite, Tri calcium Phosphate etc.
Bio Medical - Hydrogels and serum’s.
Food Engineering – Starch, Proteins, Pastries, Chocolates, Cake batters, Millets etc.
Pottery – Porcelain Clays
