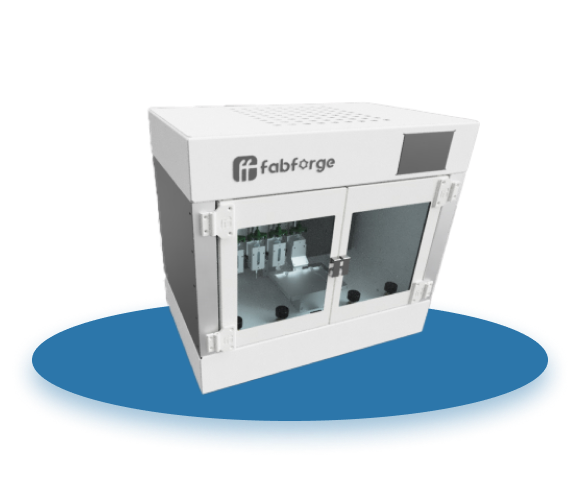

Fabforge-BioX4
- Unlock new dimensions in bioengineering with our precision bioprinter. Ideal for developing custom tissues and advancing medical research. Craft the future of healthcare with groundbreaking 3D printing technology
- Explore Multi materials and pellet printing in a single system.
Machine Specification
Version
Fabforge-BioX4
Technology
PEP
No.of Heads
4+1 4pneumatic heads + 1 pellet head
Print Head Setup
Auto lifting
Build Table
Glass Slides, Petridish,Wellplates
Build Size
130x90x65mm (XYZ)
Sterlization
Hepa 12 with 275nm UV light
Local Curing
365,405,465,520nm Heads
Head Temp
Upto 80˚C for Head C and D
Bed Temp
Upto 80˚C
Pellet head Temp
Upto 220˚C
Supported nozzles
0.15mm - 1.2mm
Position Accuracy
X/Y 0.01 mm ; Z 0.02mm
Supported Materials
Open source- Hydrogels, Bio-inks, live cells
Operating Pressure
Upto - 6bar
Working viscosity
Upto 12000 poise
Pressure Display
Digital units Kpa,Bar,Psi
Machine Weight
30 kgs
Package Weight
45 kgs
Foot Print
610x330x500mm
Power
230V AC
Consumption
360 Watts
Input Format
STL, .3mf
Output Format
G Codes
Warranty
1 year replacement warranty
Service
1 year free Service
Connectivity
