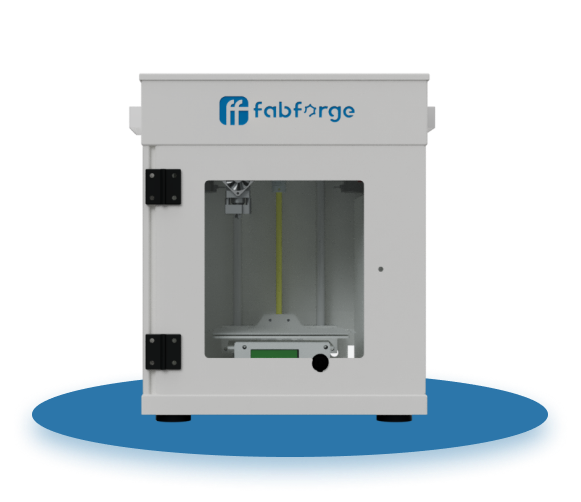

Fabforge-PLT1
- Revolutionize your research with our advanced pellet 3D printer. Ideal for experimental applications, it offers unmatched material flexibility and cost-efficiency. Achieve precise, high-quality prints with rapid production capabilities. Enhance your research with innovative pellet extrusion technology. Explore new with pellets printing in additive manufacturing today
Machine Specification
Version
Fabforge-PLT1
Technology
DPEP (Direct Pellet Extrusion Printing)
Mechanism
Core-Xy
System
PPD
Extruders
Single
Head Volume
30CC
Build Size
100x100x100mm (XYZ)
Nozzle Variants
0.6mm-1.0mm
Head Temperature
Upto 250˚C
Operating Pressure
0-0.6Mpa / 0-6 bar
Layer Resolution
0.6mm-1.0mm
Printing Speed
upto 30mm/sec
Travel Speed
Upto 200mm/sec
Position Accuracy
X/Y 0.01 mm ; Z 0.02mm
Machine Weight
18 kgs
Package Weight
25 kgs
Foot Print
310x310x390mm
Power
110 V/230V AC
Consumption
240Watts
Input Format
STL, .3mf
Output Format
G Codes
Warranty
1 year replacement warranty
Service
1 year free Service
Connectivity
Supported Materials -Open source
PCL,PVA,ABS etc
Pellets with 3mm diameter or below
